Features
HF01 slip rings are 1 channel High Frequency, standard, off-the-shelf.
It could support 1 channel High Frequencys(up to 18Ghz) transmitting on 360° rotating, The RF rotary joints are needed wherever high-frequency signals have to be transmitted between a fixed platform and second platform in continuous rotation.Such applications includs traditional radar technology for ai traffic control or anti-missile defence,medical engineering, V-sat and Satcom technology as well as TV camera systems or cable drums that allow sensitive cable to be wound.the signal frequency can be DC TO 40GHz.
HF01 are often used with electronic sliprings, call optical-electrical hybrid slipring, transmit power and high speed data.
Options(On your request)
Combine with Power circuits and signal circuits
HF01 series Slip Rings
| Parts# | Connector Type |
| HF01-SMA | SMA |
| HF01-N | N-type |
| (RF Rotary joints) Specifications |
| Max speed | 60RPM | Torque | 0.1N.m |
| Frequency | DC~18Ghz | Insertion loss | 0.3dB |
| Insertion loss ripple | 0.05dB | VSWR | ≤1.3 |
| VSWR ripple | 0.05 | Start up torque | 0.1N.m |
| Estimated life cycle | 100 million | Housing materia | Stainless steel |
| Working temperature | -40 to 85 °C | Storage temperature | -50 to 85 °C |
| IP rating | IP 51 | Weight | 50g |

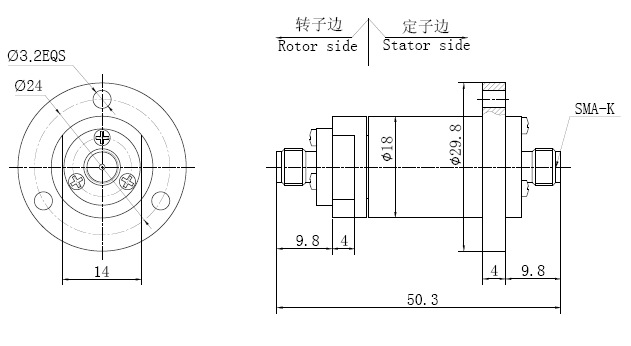

HF01-SMA Drawings

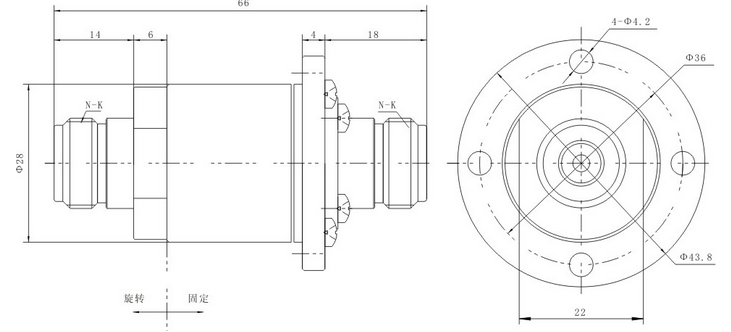

HF01-N Drawings
Typical applications
Industrial machinery-machining centers, rotary index table；
Heavy equipment turrets, cable reels, test equipments；
Packaging machines, palletizing machines, magnetic clutch,
process equipment；
Rotary sensors, emergency lighting, robotics；
Exhibit/display equipment, medical equipment
Customized on your request
If you don't see what you want in this website,let us know; we may already have it designed or we will modify a design to meet your requirements. In many cases the specifications in the catalog can be changed to include bore size, circuits number, higher current/voltage,flange, lead wire length,shielding,connectors,higher speed,IP68,military grade,higher temperature, mixed with pneumatic/hydraulic capability. Please ask if you don't see exactly what you need as only a small fraction of our Rion slip rings are included in this catalog!
For a detailed outline drawing/3D modal files of a specific model number, or to request a quotation, please contact your local sales representative or send an email to
[email protected]
